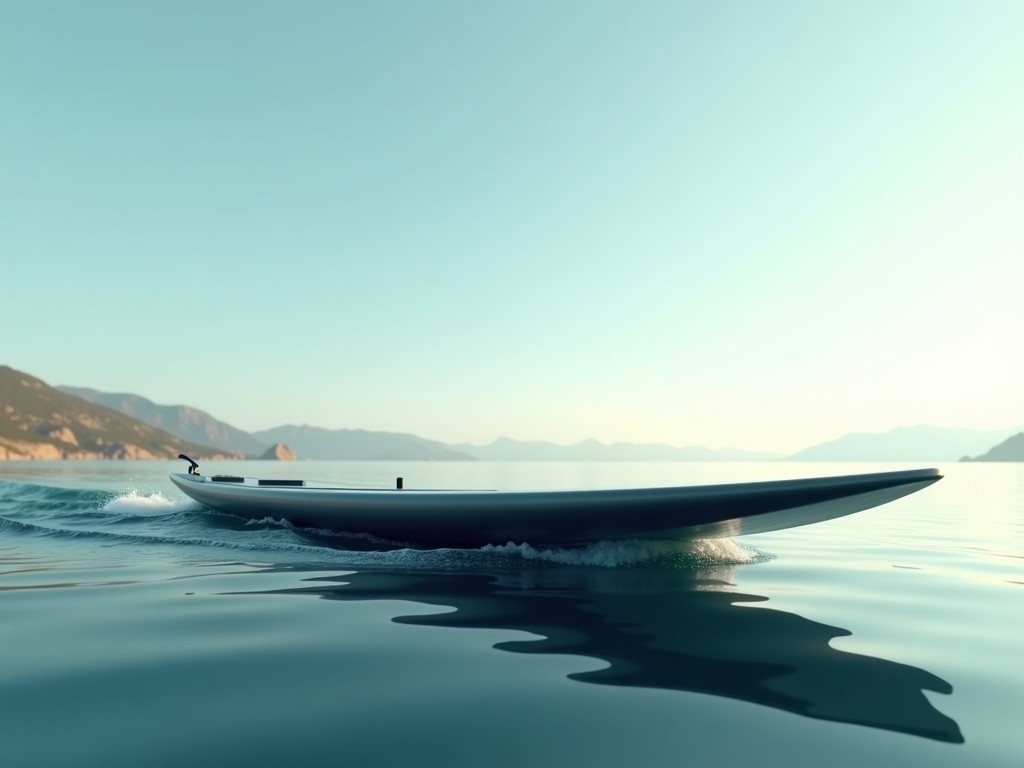

Long Range Electric Hydrofoil Surfboard

The long range electric hydrofoil surfboard combines electric propulsion with hydrofoil lift technology to extend operational range beyond conventional electric surfboards. By lifting the hull clear of the water at speed, hydrodynamic drag is reduced by approximately 60-70%, enabling significantly greater travel distance on a single battery charge. This configuration addresses the primary limitation of electric watercraft—energy density—through aerodynamic efficiency rather than increased battery mass.

Core propulsion consists of a sealed, water-cooled brushless DC motor mounted within a streamlined pod beneath the foil mast. Motor continuous power ratings typically range from 5 to 15 kW, with peak outputs up to 25 kW for acceleration and hill climbing. Electronic speed controllers manage torque delivery and regenerative braking, recovering energy during deceleration or when riding swells. Motor efficiency exceeds 90% across the operational throttle range, minimizing thermal losses and extending usable battery capacity.

Energy storage utilizes lithium-ion battery packs with nominal voltages between 36V and 72V and capacities from 20Ah to 40Ah, delivering 0.7 to 2.9 kWh of usable energy. Battery management systems monitor cell voltage, temperature, and current to prevent overcharge, over-discharge, and thermal runaway. Pack enclosures are rated IP68 for continuous submersion, using marine-grade epoxy potting and corrosion-resistant connectors. Typical cycle life exceeds 500 full charge-discharge cycles at 80% depth of discharge before capacity drops below 80% of original.

Hydrofoil assembly includes a tapered mast, front wing, and rear stabilizer, all constructed from pre-preg carbon fiber with vacuum-bag curing. Mast lengths range from 70 to 90 cm, selected based on rider weight, intended water depth, and takeoff speed requirements. Front wing aspect ratios typically fall between 5 and 8, balancing lift efficiency at low speeds with stability at higher velocities. Wing surface areas range from 1200 to 1800 cm², directly influencing stall speed and payload capacity. All foil joints use titanium fasteners and torque-controlled assembly to prevent galvanic corrosion and ensure consistent alignment.

Control and rider interface feature a wireless handheld throttle with magnetic latch safety cutoff and waterproof rating IP67. Throttle signals are transmitted via 2.4 GHz FHSS (Frequency Hopping Spread Spectrum) to a receiver sealed within the board’s nose compartment. Redundant failsafes engage if signal loss exceeds 200 milliseconds, cutting motor power and activating aerodynamic drag brakes. Integrated GPS and IMU modules log speed, depth, heading, and battery state for performance analysis and fault diagnostics.

Performance Characteristics

Operational range is the defining performance metric, directly influenced by battery energy, propulsion efficiency, and hydrofoil lift-to-drag ratio. Under typical conditions—80 kg rider, 12 km/h average speed, moderate swell—the system achieves 25 to 40 kilometers of range on a single charge. Range extends to 50+ kilometers when operating at optimal lift-off speed (14-16 km/h) with minimal throttle modulation and in low-resistance environments such as inland lakes or protected coastal zones. Real-world range varies with rider weight, water salinity, wave height, and prevailing wind direction.

Takeoff speed—the velocity at which hydrodynamic lift exceeds board weight—depends on wing loading and foil efficiency. For a 75 kg rider with a 1500 cm² front wing, takeoff occurs at approximately 11-13 km/h. Heavier riders or smaller wings increase this threshold, while larger wings or lower mass reduce it. Once airborne, drag reduction allows cruising at 18-22 km/h with less than 50% throttle input, significantly improving energy efficiency compared to displacement-mode operation.

Maximum speed is limited by motor power, cavitation onset, and structural integrity of the foil assembly. Most configurations achieve 28-35 km/h before ventilating or experiencing excessive mast flutter. Speed governors in the ESC prevent exceeding safe RPM limits, protecting both motor and drivetrain. Structural testing confirms mast and wing integrity up to 40 km/h in freshwater environments, though sustained operation above 35 km/h is discouraged due to increased fatigue loading on composite joints.

Design and Construction Details

The board core uses closed-cell PVC foam with density 40-60 kg/m³, shaped via CNC milling to precise hydrodynamic contours. Outer skins consist of biaxial and triaxial fiberglass laminates with epoxy resin, providing impact resistance and UV stabilization. Stringers of unidirectional carbon fiber run longitudinally to resist hogging and sagging under dynamic loads. Deck pads are made from marine-grade EVA with diamond-groove patterning for traction and water drainage, bonded using pressure-sensitive acrylic adhesive tested for saltwater immersion.

Mast attachment to the board employs a reinforced aluminum mounting box with stainless steel bleeders and drainage channels to prevent water entrapment. The mast passes through a watertight gland featuring dual lip seals and a hydrostatic balancing chamber to equalize pressure during depth changes. All external fasteners are grade 316 stainless steel or titanium, selected for corrosion resistance in chloride environments. Torque specifications for mast bolts are 8-10 Nm, verified with calibrated wrenches during assembly.

Cable routing follows a star topology from the motor controller to the battery, throttle receiver, and GPS module, with all conductors rated for 60V DC and marine UV resistance. Power cables use tinned copper strands with silicone insulation and dual-wall heat shrink terminations. Signal lines are twisted pair and shielded to minimize EMI from the motor controller. Penetrations through the board hull are potted with polyurethane sealant and strain-relieved to prevent fatigue failure at entry points.

Typical Applications

Long range electric hydrofoil surfboards serve users requiring extended endurance without reliance on wind, waves, or internal combustion. Applications include coastal patrol by lifeguard services, where silent operation and zero emissions allow close approach to swimmers or wildlife without disturbance. Scientific researchers use the platforms for nearshore bathymetric sampling, deploying sensors mounted on the mast to collect temperature, salinity, and turbidity data at consistent speeds and depths unattainable with paddlecraft or motorboats in shallow zones.

Tourism operators deploy the boards for guided eco-tours in marine protected areas, leveraging low wake and acoustic signature to minimize seabed disturbance and marine mammal stress. Training facilities use them for hydrofoil skill development, as the consistent thrust allows repetition of takeoff and maneuvering exercises without waiting for wave sets. Emergency response teams evaluate the units for rapid deployment in flood scenarios, where their shallow draft and portability enable navigation through debris fields inaccessible to conventional rescue boats.

Recreational users benefit from the ability to traverse long stretches of coastline or inland waterways in a single session, reducing the need for vehicle shuttles between launch points. The quiet operation enhances the experience in environmentally sensitive zones where noise restrictions apply. Unlike traditional surfboards, the electric hydrofoil enables riders to generate their own energy, making it viable in flat water conditions such as lakes, reservoirs, and calm bays where windsurfing or kitefoiling would be impractical.

Customization options allow adaptation to specific operational profiles. Battery capacity can be increased within hull volume constraints by selecting higher energy density cells or reconfiguring internal layout, though this affects center of gravity and requires updated stability analysis. Motor kv rating can be adjusted to prioritize torque for heavy payloads or speed for reconnaissance missions, necessitating corresponding changes in propeller pitch and ESC firmware. Foil geometry is modular—mast length, wing area, and aspect ratio can be exchanged to suit different water depths, payloads, or speed targets, with each combination requiring updated hydrostatic and hydrodynamic validation.

Quality control follows ISO 9001 principles with additional emphasis on environmental sealing and mechanical integrity. Each completed unit undergoes hydrostatic pressure testing to 0.5 bar gauge for 10 minutes to verify seal integrity. Motor insulation resistance is measured at 500V DC, requiring >100 MΩ between windings and ground. Foil alignment is checked using laser tracking systems, with mast perpendicularity to the board plane held within 0.5° and wing symmetry within 2mm. Final validation includes a 30-minute operational test cycle covering acceleration, steady cruise, turning, and regenerative braking, with data logged for traceability.
